💡 Light up your projects with precision sensing — don’t get left in the dark!

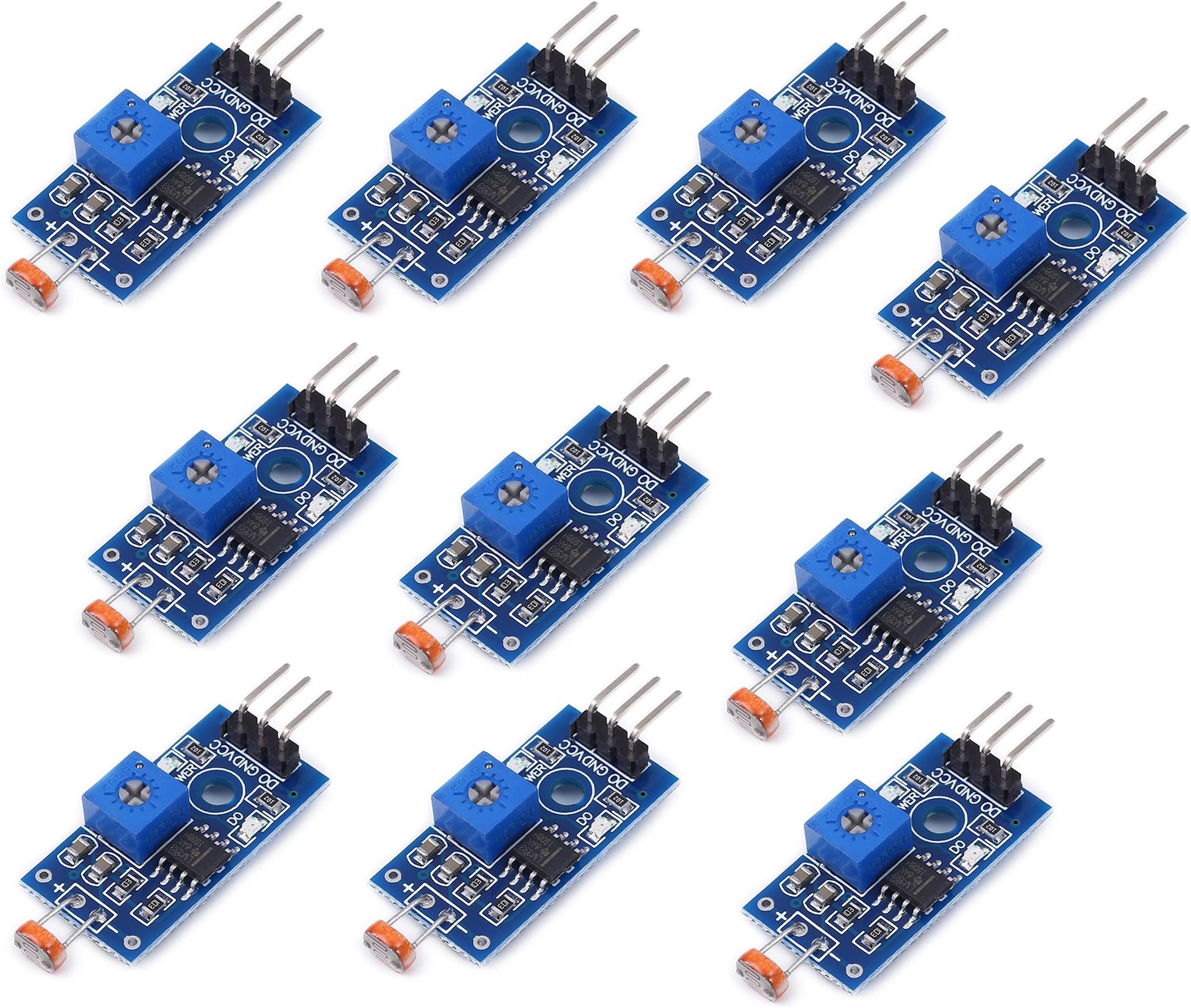

The Teyleten Robot 5MM LDR Photosensitive Sensor Module is a compact, highly sensitive light detection device featuring a digital output driven by an LM393 comparator. Operating between 3.3V and 5V, it offers adjustable brightness thresholds and a robust 15mA output capable of directly interfacing with microcontrollers and relay modules. Designed for easy installation and reliable performance across a wide temperature range, this 10-pack sensor set is ideal for smart lighting, environmental monitoring, and innovative Arduino projects.
| ASIN | B099N5W9F7 |
| Best Sellers Rank | #5,576 in Computer Internal Components |
| Brand Name | Teyleten Robot |
| Centerline Length | 32 Millimeters |
| Color | Blue |
| Connector Type | Screw |
| Current Rating | 15 Milliamps |
| Customer Reviews | 4.6 4.6 out of 5 stars (26) |
| Item Dimensions W x H | 1.26"W x 0.55"H |
| Manufacturer | Teyleten Robot |
| Material Type | Copper |
| Model | C40- |
| Mounting Type | bolt mount |
| Number Of Contacts | 1 |
| Number Of Poles | 1 |
| Number of Positions | 1 |
| Part Number | C40- |
| Specification Met | Ul 60947-7-2, Fcc |
| Temperature Range | -2E+1 Degrees Celsius |
| Upper Temperature Rating | 55 Degrees Celsius |
B**I
Works for the Arduino
Great. Everything for the Arduino on Amazon!😁😄
B**G
Compatible with 3.3v GPIO
Works well and consistently, and the sensitivity adjustment is easy to set. The output will go low when it sees light, as high as Vcc when it senses dark. If you supply 5v, it will output 5v. The output seems to have a high output impedance, so using a simple voltage divider resistor network to bring the output down to 3.3v is a bit problematic if using anything under 100k ohm resistors. Just measure the output to make sure. However, if you supply 3.3v for the Vcc, the output will go to 3.3v, which is compatible with most GPIOs (like the RP2040 uC). So no need for any kind of level shifting or voltage divider resistors. It uses VERY little current, so can be supplied by the 3.3v output of many uC boards.
E**E
Works With 3V3 and 5V
Great product for use with my ESP32, Arduino, and Raspi projects! These boards are of a sturdy build, and they are capable of working with both3V3 and 5V logic levels...even with 20+ feet of wire running between the boards!
F**R
Work as described.
I used them to switch on and off crossing lights on my model train layout. Work as they should.
R**L
Good quality
Works as hoped
R**)
Cost effective pre-built sensor
I was looking to build a CDS sensor to allow an easy non-intrusive system to show me an indicator LED on an oxygen machine to give a remote status. This worked perfectly, inexpensive and save me a lot of time in filling this need. Amazing what you can find on Amazon!
B**.
As described
Works as expected. Recommended.
